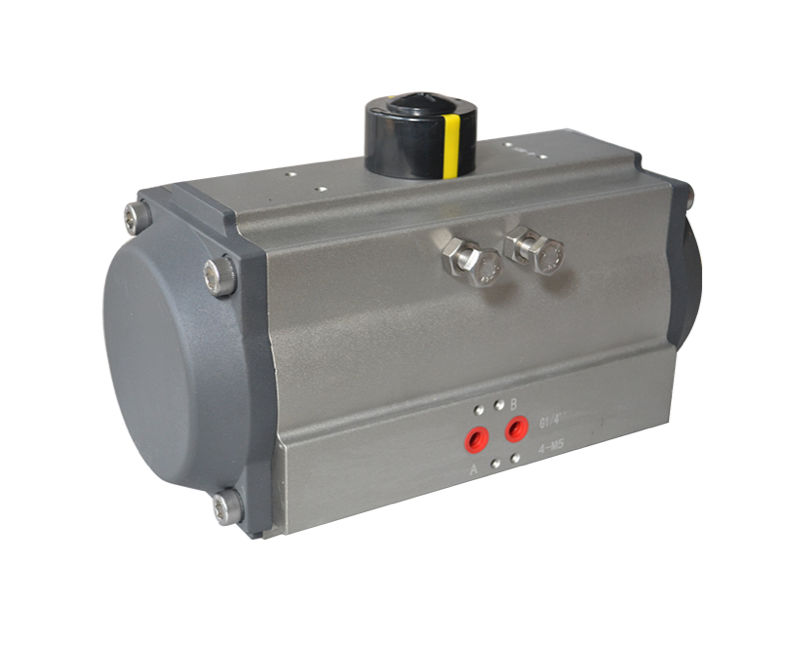

Pneumatic Rack and Pinion Actuator
Engineered for reliable performance in demanding oil, gas, and industrial applications. Convert linear piston motion into precise rotary torque through a central pinion gear.
Key Features
Compact, durable, and easy to maintain, our rack and pinion actuators are ideal for both on/off and modulating service.
Quarter-turn Movement
Precise control for optimal valve positioning and flow regulation.
High Torque Design
Delivers maximum torque in a compact, space-efficient design.
Rugged Construction
Built for long life and reliable operation in harsh environments.
Easy Maintenance
Simple design ensures dependable operation with minimal maintenance requirements.
Versatile Application
Suitable for ball, butterfly, and plug valves across various industries.
Dependable Operation
Consistent performance for critical industrial applications.
Applications
Our pneumatic rack and pinion actuators are designed for demanding applications across various industries.
Oil & Gas
Reliable operation in upstream, midstream, and downstream applications.
Process Automation
Precise control for automated manufacturing and processing systems.
Industrial Valves
Compatible with various valve types for comprehensive flow control.
Specifications
Technical specifications for our pneumatic rack and pinion actuators.
| Parameter | Specification |
|---|---|
| Operating Pressure | 2-10 bar (29-145 psi) |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Rotation Angle | 90° ± 2° |
| Torque Range | 5-5000 Nm (4-3688 lb-ft) |
| Body Material | Aluminum, Cast Iron, Stainless Steel |
| Piston Material | Aluminum, Steel |
| Seal Material | NBR, Viton, EPDM |
| Mounting | Direct Mount, ISO 5211 |
