3-Piece Forged Steel Trunnion Mounted Ball Valve

Engineered for Performance, Built for Reliability

The SET Valves 3-piece forged steel trunnion mounted ball valve is engineered for pipeline and critical service applications across the global energy infrastructure where zero-leakage, positive shutoff is required. With API monogram certification and full compliance with international standards, these valves deliver reliability, durability, and ease of integration into any piping network.

South East Texas Valves & Automation (SET Valves)

Our trunnion ball valves feature advanced engineering for exceptional performance in high-pressure and critical applications across the global energy infrastructure.

High Pressure Rating

Designed to handle extreme pressures up to 2500# with superior structural integrity and reliability.

Zero Leakage

Advanced sealing technology ensures bubble-tight shutoff even under the most demanding operating conditions.

Low Torque Operation

Trunnion mounting reduces operating torque, making actuation easier and extending actuator life.

Fire Safe Design

Built with fire-safe features and materials to maintain integrity even in extreme fire conditions.

Full Bore Design

Full bore construction minimizes pressure drop and allows for pigging operations in pipeline applications.

Easy Maintenance

Modular design allows for easy maintenance and repair without removing the valve from the pipeline.

Design Specifications & Compliance

Built to meet the highest international standards and certifications for critical service applications.

Design / Materials

API 6D (25th Edition), ASME B16.34

Fire Safe

API 6FA / API 607 (7th Edition)

Face to Face

ASME B16.10

Flanged Ends

ASME B16.5

Corrosion Resistance

Conforms to NACE MR0175 / ISO 15156-1

Mounting

ISO 5211

Testing

API 598 / API 6D

Certifications

API 6D Monogrammed

Emissions

Low fugitive emissions to API 641

Size & Pressure Ratings

Comprehensive specifications and capabilities of our trunnion ball valve range.

General Specifications

Size Range:2" - 48"
Pressure Class:ASME Class 150 through 2500
Temperature Range:-20°F to 500°F *
Body Material:Carbon Steel, Stainless Steel, Duplex
End Connections:Flanged, Butt Weld
Operation:Manual, Pneumatic, Electric, Hydraulic

Applications

Oil & Gas Transmission
Refinery Operations
Petrochemical Plants
Power Generation
Pipeline Systems
Cryogenic Applications

*Higher or lower temperatures achievable with metal seated, cryogenic, or different body/trim materials designs

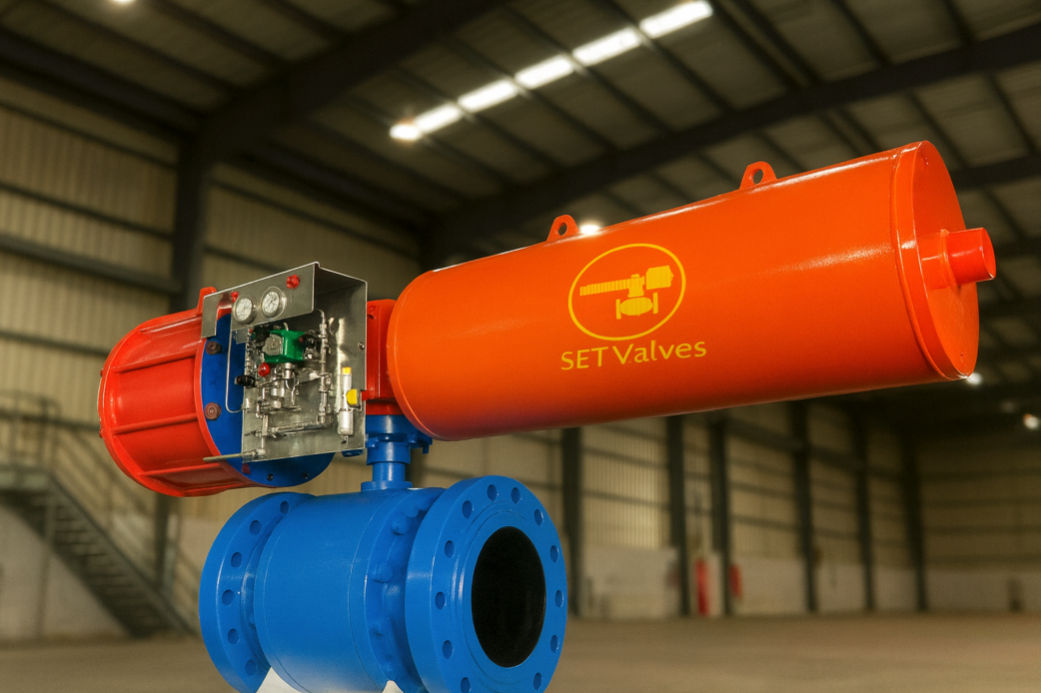

3pc Forged Bolted Body Trunnion mounted ball valve

Key Features

Single and Double Piston Effect (SPE / DPE) seats
Available in DBB, DIB-1, and DIB-2 configurations
Interchangeable seat designs allows us to quickly switch between SPE and DPE seats allowing us to convert a DBB (SPE x SPE) to DIB-2 (SPE x DPE) or DIB-1 (DPE x DPE) in short order
Blowout-proof stem design
Anti-static construction for operational safety
3-Piece Forged Bolted Body Trunnion Ball Valve

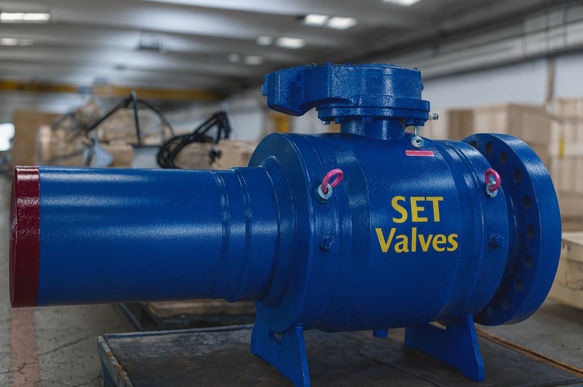

Forged Fully Welded Body Trunnion Ball Valve

Forged Fully Welded Body Trunnion mounted ball valve

Key Features – Fully Welded Body Trunnion Ball Valves

Available in sizes 2" through 42"
Pressure ratings from ANSI Class 150 to 1500
End connections include Weld, Flanged, and RTJ
API-6D certified, fully tested, and monogrammed
Fire-safe design, tested to API-607 and API-6FA standards
In-house services for automation, coatings, and valve accessories
Specialized solutions available for cryogenic, subsea, and buried service

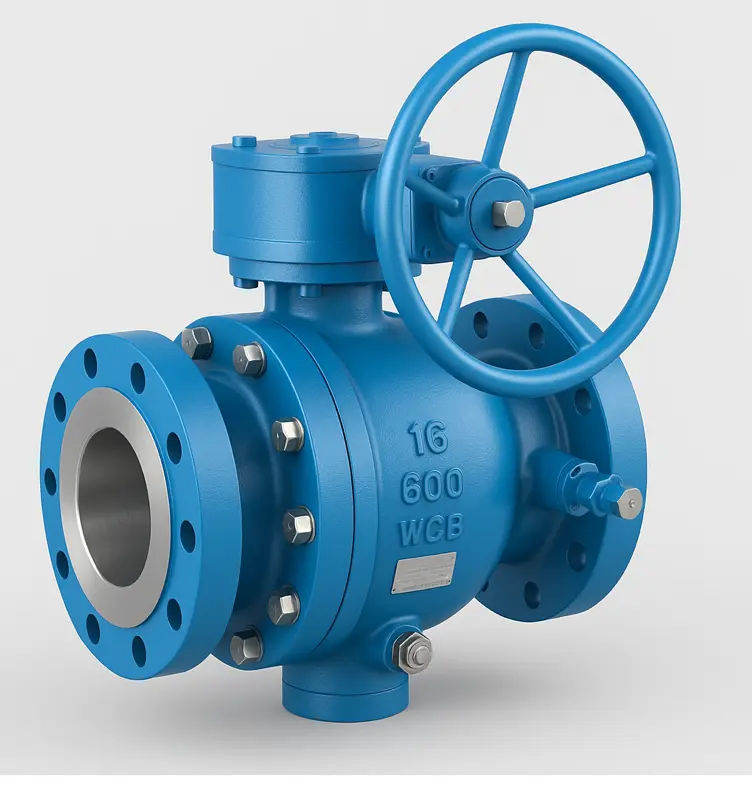

2-PC Cast Trunnion Ball Valve

Product Specifications

Size: 2" - 24"
Pressure Class: 150 - 1500
End Connection: RF, BW, RTJ
Body Material: WCB, LCC, CF8M
Seat Material: Devlon/Nylon/PEEK
Seal O-ring: HNBR, HNBR-LT, VITON, VITON-GLT
2-PC Cast Trunnion Ball Valve

Ready to Get Started?

Contact our experts to discuss your trunnion ball valve requirements and get a customized solution for your application.
