Floating ball valves

Floating ball valves are versatile, durable, and trusted across a wide range of applications. Their simple yet reliable design makes them an essential choice wherever dependable shutoff and ease of maintenance are required.

Advanced Features & Design

Our floating ball valves incorporate advanced design features and premium materials for superior performance and reliability.

Design Features

3-piece bolted body design for easy maintenance

Adjustable live-loaded stem packing with O-ring stem seal

Removable and replaceable body section

Enclosed body-cap bolting for added safety

ISO 5211 actuator mounting pad (two sizes)

Premium Materials

Seats:TFM 4215 (reinforced PTFE)

Ball & Stem:316SS

Handle:Locking lever (optional oval handles)

Standards & Compliance

ASME B16.34

Valve pressure rating standard

API 608

Metal ball valves standard

API 598

Pressure testing standard

API 607

Fire safe testing (7th edition)

NACE MR0175

Sulfide stress cracking resistance

ISO 15156

Materials for H2S environments

Valve Designs

Explore our comprehensive range of floating ball valve designs, each engineered for specific applications and performance requirements.

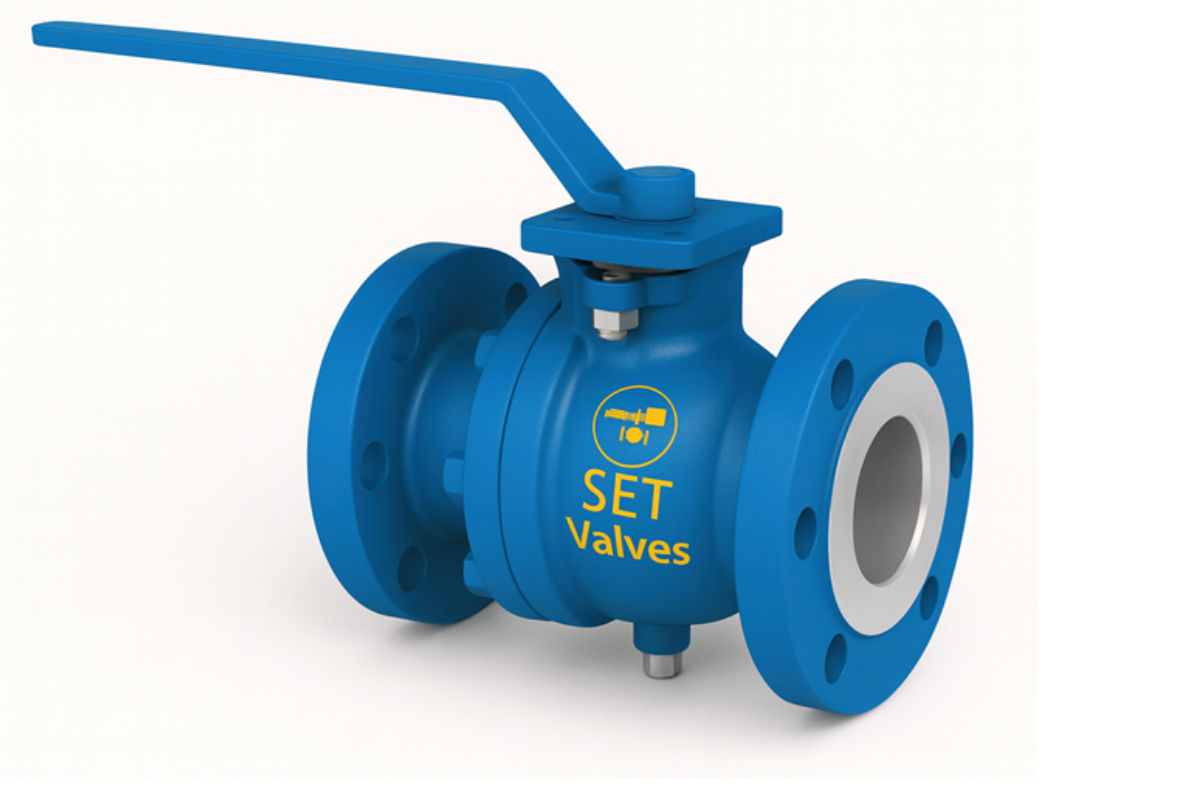

2pc Flanged Bolted Body Floating Ball Valve

Standards:

API 608ASME B16.34API 6DAPI 607NACE MR0175

Materials:

body: A216 WCB, A351 CF8M, A352 LCC

seats: TFM 4215 (Reinforced PTFE), PEEK

seals: Graphite

stem: 316SS, 17-4PH

ball: 316SS

Specifications:

sizes: 1/2" – 8"

pressure Class: ANSI 150, 300, 600

connections: Flanged (ASME B16.5)

port: Reduced, Full Port

end Configurations: RF, RTJ

operator: Lever, Gear operator (optional)

locking Device: Standard locking device

stem Packing: Adjustable live-loaded stem packing with O-ring stem seal

body Design: Two-piece bolted body design for easy maintenance

mounting Pad: ISO 5211 actuator mounting pad (two sizes)

compliance: NACE MR0175, Fire-safe design (API 607), API 641

temperature Range: Temperature range: -50F - 500F (remove the Celsius temps)

flow Direction: Bidirectional

body Bolting: Enclosed body-cap bolting for added safety

3pc Forged High-Pressure Oil Patch Valve

Materials:

body: A105N, LF2, 316SS

trim: 316SS

Specifications:

sizes: 1/2" – 2"

pressure Class: WOG 2000–6000

end Configurations: FNPT, SW, FNPT x SW

port: Reduced, Full

Standards & Compliance:

API 608ASME B16.34NACE MR0175Fire-safe design

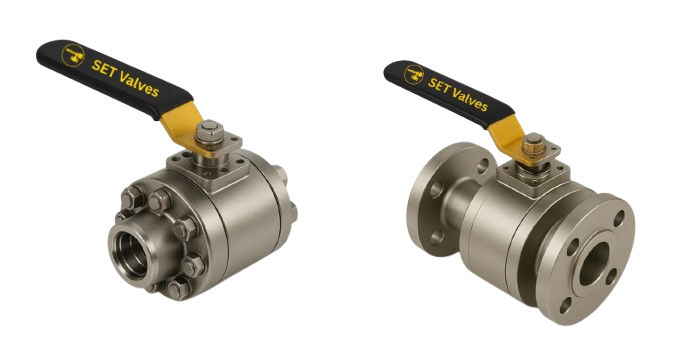

3pc Forged Bolted Body Floating Ball Valve

Materials:

body: A105, LF2, F316ss, F51ss

trim: 316SS, 17-4ph, xm19 or F51

seats: PEEK, Nylon, RPTFE or TFM

seals: Viton+graphite, HNBR+graphite

Specifications:

sizes: 1/2″ – 2″

pressure Range: ASME Class 600, 1500, 2500

port: Full Port (2″ reduced)

end Configurations: Flanged or Butt-weld ends

operator: Lever

locking Device: Standard

Standards & Compliance:

API 608API 6DASME B16.34API 607 fire safeASME B16.5B16.10B16.25B16.34NACE compliant

Pressure Test:

API 598API 6D

3pc Cast Floating Ball Valve

Materials:

body: WCB, CF8M

trim: 316SS

seats: RPTFE

seals: Graphite

Specifications:

sizes: 1/2" – 2"

pressure Range: 1500/2000 CWP

port: Full

end Configurations: THD, SWE, THD x SWE

operator: Lever

locking Device: Standard

Standards & Compliance:

API 608ASME B16.34API 607 Fire safeNACE

Pressure Test:

API 598

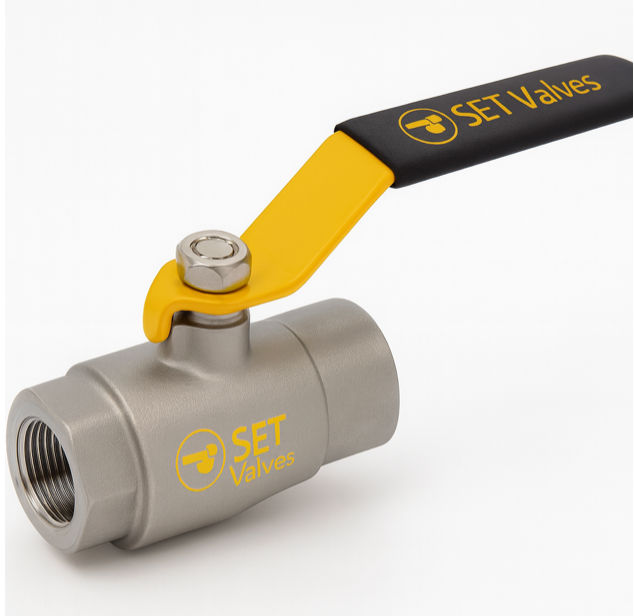

Uni-body Floating Ball Valve

Materials:

body: WCB, CF8M

trim: 316SS

seats: RPTFE

seals: Graphite

Specifications:

sizes: 1/2" – 2"

pressure Range: 2000 CWP (Class 800)

port: Reduced

end Configurations: THD, SWE, THD x SWE

operator: Lever

locking Device: Standard

Standards & Compliance:

MSS SP-110API 607 Fire safeNACE

Pressure Test:

API 598

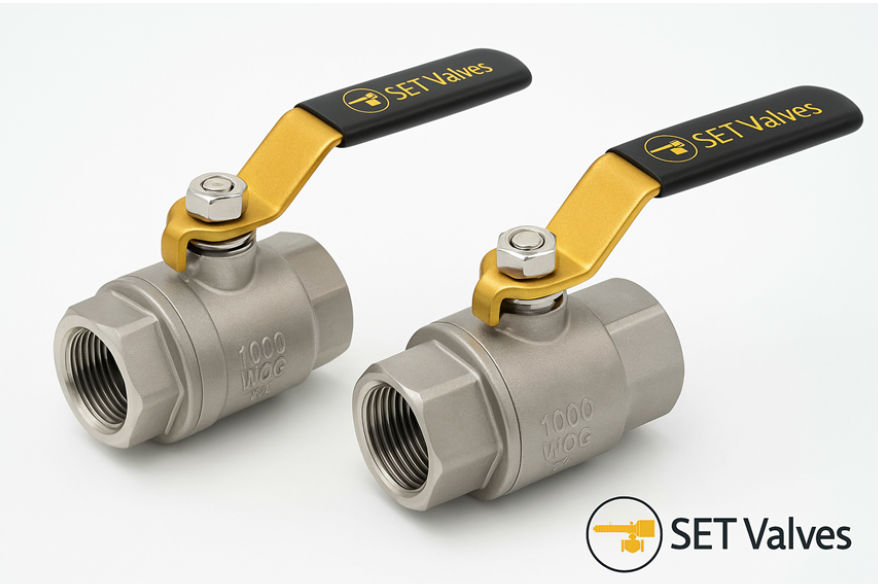

2pc Threaded Body Floating Ball Valve

Materials:

body: WCB, CF8M

trim: 316SS

seats: RPTFE

seals: RPTFE

Specifications:

sizes: 1/4" – 4"

pressure Range: 1000 CWP

port: Full

end Configurations: Threaded

operator: Lever

locking Device: Standard

Standards & Compliance:

MSS SP-110NACE

Pressure Test:

MSS SP-110
