Gate, Globe & Check Valves
Our gate, globe, and check valves are built to give customers peace of mind in the most demanding applications. From energy and petrochemical operations to general industry, they deliver consistent performance, safety, and long-term durability.
General Specifications
Comprehensive specifications and compliance for gate, globe, and check valves.

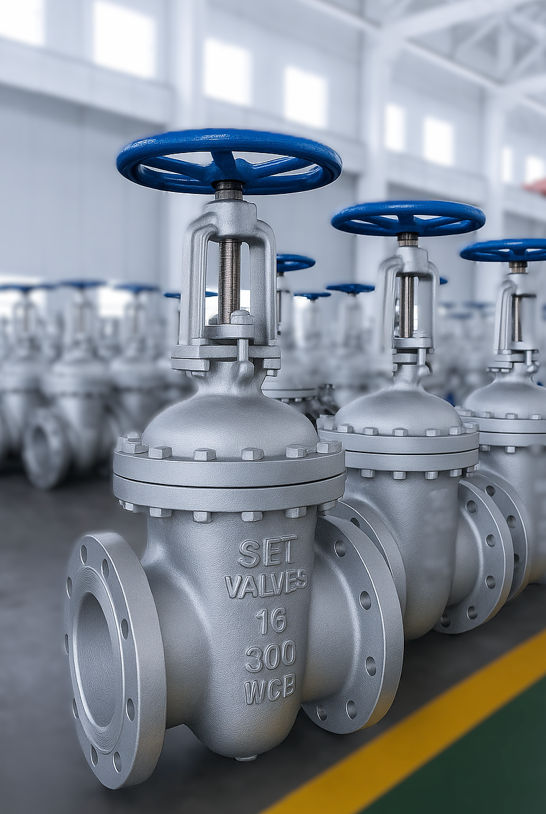

Gate Valve
Standards:
API 600ASME B16.34CEAPI 624ISO 15848-1
Size Range:
2" – 48"
Pressure Class:
150 – 2500
End Connections:
RFBWRTJ
Body Materials:
Carbon Steel
Stainless Steel
Duplex
C5/C12/C12A Chrome Alloys
Nickel Alloys

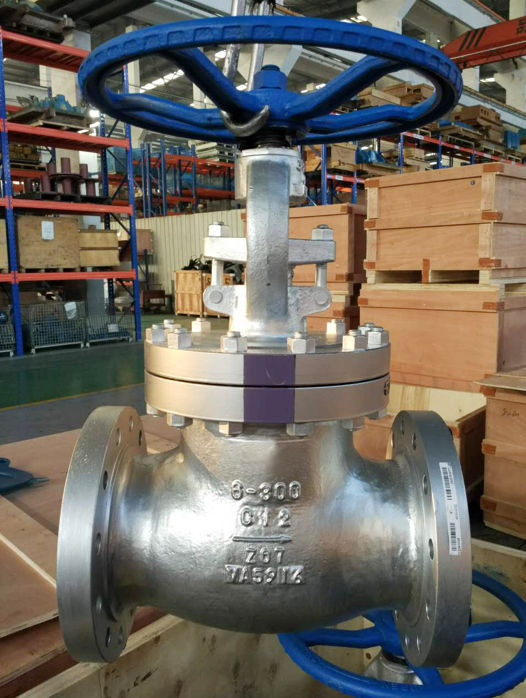

Globe Valve
Standards:
API 623ASME B16.34CEAPI 624ISO 15848-1
Size Range:
2" – 16"
Pressure Class:
150 – 2500
End Connections:
RFBWRTJ
Body Materials:
Carbon Steel
Stainless Steel
Duplex
C5/C12/C12A Chrome Alloys
Nickel Alloys

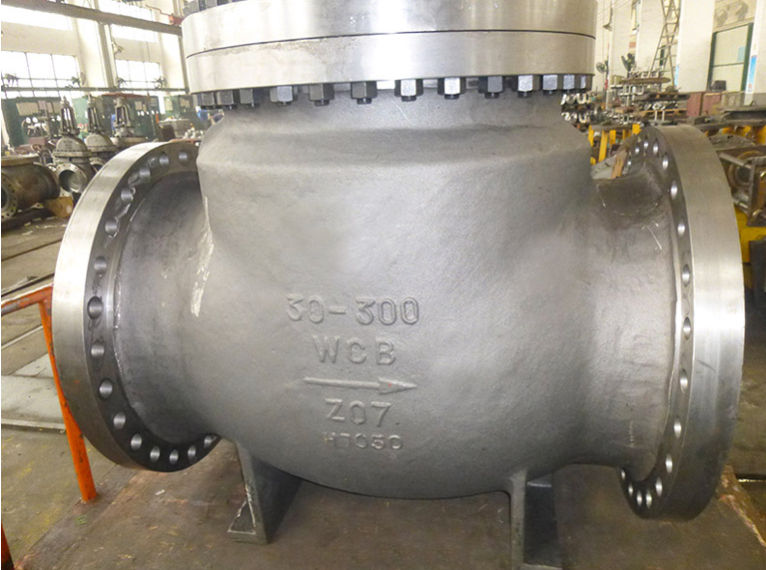

Check Valve
Standards:
API 594ASME B16.34CE
Size Range:
2" – 48"
Pressure Class:
150 – 2500
End Connections:
RFBWRTJ
Body Materials:
Carbon Steel
Stainless Steel
Duplex
C5/C12/C12A Chrome Alloys
Nickel Alloys
Forged Gate, Globe & Check Valves
Compact, durable, and engineered for high-pressure, high-temperature environments.
Design Features
Forged construction for superior integrity and durability
Compact design with high performance
Low-maintenance, long service life
Available in a wide variety of trims and materials
Valve Designs
Explore our forged valve range engineered for strength and performance.
Forged Gate Valves
Standards:
API 602ASME B16.34BS 5352CE
Size Range:
1/2" – 2"
Pressure Class:
150 – 2500
End Connections:
Threaded (NPT)Socket WeldButt WeldFlanged (on request)
Body Materials:
A105LF2F304F316DuplexAlloy SteelsNickel Alloys
Bonnet Options:
Bolted Bonnet (BB)Welded Bonnet (WB)Pressure Seal (PS)
Certifications:
API 602API 624ISO 15848-1
Forged Globe Valves
Standards:
API 602ASME B16.34BS 5352CE
Size Range:
1/2" – 2"
Pressure Class:
150 – 2500
End Connections:
Threaded (NPT)Socket WeldButt WeldFlanged (on request)
Body Materials:
A105LF2F304F316DuplexAlloy SteelsNickel Alloys
Bonnet Options:
Bolted Bonnet (BB)Welded Bonnet (WB)Pressure Seal (PS)
Trim Options:
StandardHard-faced trims (Stellite, Alloy 6, etc.)
Certifications:
API 602API 624ISO 15848-1
Forged Check Valves
Standards:
API 602ASME B16.34BS 5352CE
Size Range:
1/2" – 2"
Pressure Class:
150 – 2500
End Connections:
Threaded (NPT)Socket WeldButt WeldFlanged (on request)
Body Materials:
A105LF2F304F316DuplexAlloy SteelsNickel Alloys
Bonnet Options:
Bolted Bonnet (BB)Welded Bonnet (WB)Pressure Seal (PS)
Types Available:
Swing CheckLift Check (Piston)Ball Check
Certifications:
API 602
