Butterfly Valves
Compact and efficient flow control solutions for various applications
Double Eccentric Butterfly Valve
High-performance double eccentric butterfly valves designed for demanding applications with superior sealing and durability.
Specifications
| Parameter | Specification |
|---|---|
| Range Size | 2" (50A) ~ 80" (2000A) |
| Fluid Application | Water, Air, Steam, Gas |
| Rating | JIS 10K, 20K, PN10, 16, 25 ANSI 150#, 300# |
| End Connection | Wafer, Lugged, Flanged |
| Temp. Range | -40 ~ 230 °C |
| Body Materials | Ductile Iron, Cast Steel, Stainless Steel, (Ni) Al Bronze, (Super) Duplex S.S etc. |
| Disc Materials | Cast Steel, Stainless Steel, (Ni) Al Bronze, (Super) Duplex S.S etc. |
| Seat | PTFE, RTFE (with Metal for Fire Safety) |

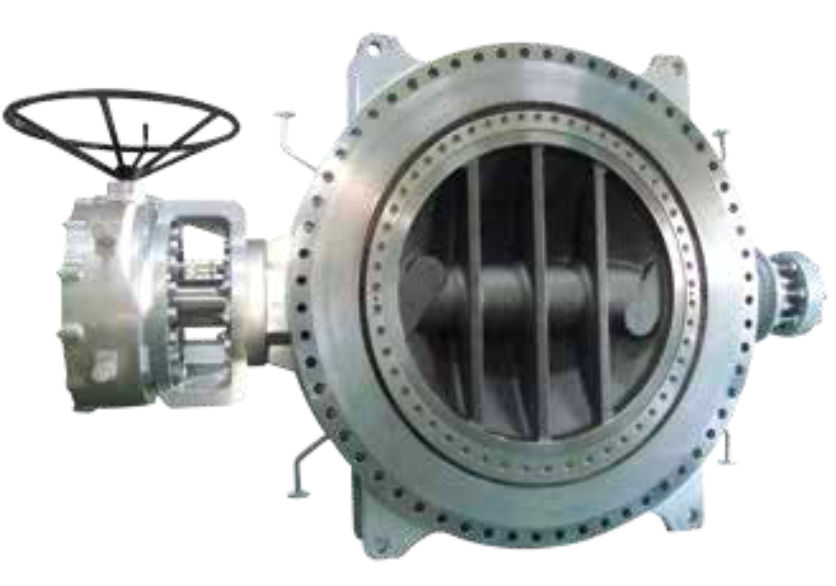

Triple Offset Butterfly Valve
Advanced triple offset butterfly valves offering superior performance for high-pressure and high-temperature applications.
Specifications
| Parameter | Specification |
|---|---|
| Range Size | 3" (80A) ~ 120" (3000A) |
| Fluid Application | Water, Air, Steam, Gas |
| Rating | JIS 10K, 20K, 30K, 40K, 63K ANSI 150#, 300#, 600#, 900# PN10, 16, 25, 40 |
| End Connection | Wafer, Lugged, Flanged |
| Temp. Range | -50 ~ 650 °C |
| Body Materials | Cast Steel, Stainless Steel, (Ni) Al Bronze, (Super) Duplex S.S etc |
| Disc Materials | Stainless Steel, (Ni) Al Bronze, (Super) Duplex S.S etc |
| Seat | Metal (Laminated) with Graphite |
